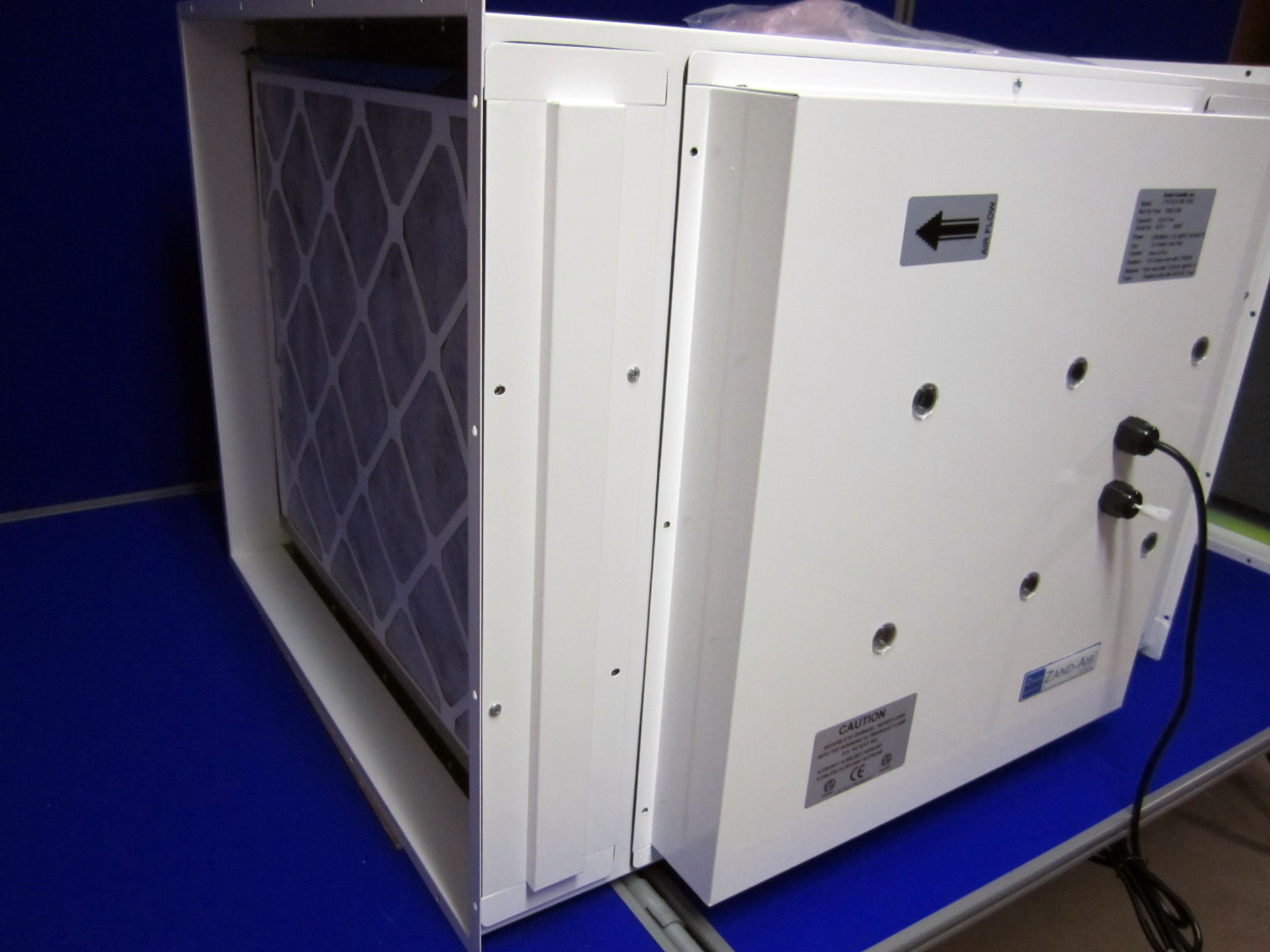

PCOC™3 – In Duct Medical Laboratory Purification System Photo Catalytic Air Purifier
The PCOC™3 is the ultimate fixed system for highly efficient air purification in medical laboratories, and other facilities, with extreme demands on superior air quality. The units are fitted directly into your ventilation system.
PHOTO-CATALYTIC OXIDIZING (PCO) technology converts and neutralizes Volatile Organic Compounds (VOC), odours, fumes, and toxic chemicals to benign water and carbon dioxide by-products.
The Technology of the PCOC™3
Our patented process to affix TiO2 to a solid substrate, for this TiO2 to interact with UVC radiation at 253.7 nm which has the advantage that this wave length does not get adsorbed by the oxygen molecules, thus does not create any ozone – O3 (tri-oxygen). Naturally occurring ozone in the atmosphere is converted by the TiO2 / UV interaction into normal di-oxygen (O2) or other ambient gases which then get converted to benign matter, including diatomic oxygen (O2) which forms 20.9% of our ambient atmosphere.

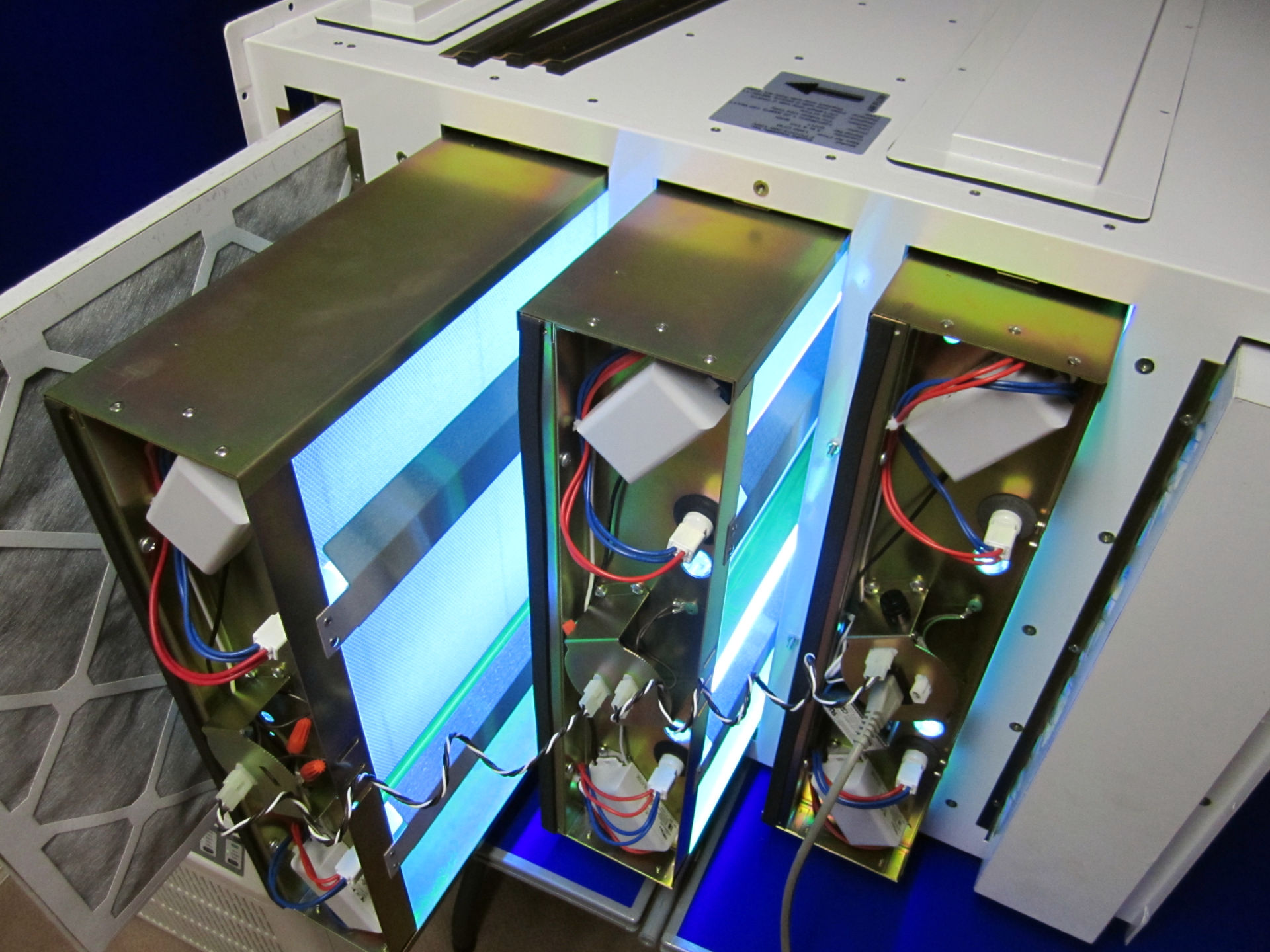

Increased Efficiency by Placing PCO Chambers in Sequence
While the photo-catalytic process is very fast, the number of individual photo catalytic actions occurring in the PCO chamber are multiple and very complex. The efficiency of this process is therefore increased by placing three such PCO chambers sequentially in a single frame, thus increasing the ‘dwelling time’ of the airstream through the PCOC™3 equipment. Placing several PCOC™3 units sequentially increases the dwelling time for the UV light interaction with the photo catalyst, thus multiplying the decomposition of VOCs and pathogens. GERMICIDAL ULTRAVIOLET LIGHT kills disease causing airborne virus and bacteria on contact. An advantage is that UVC radiation at 253.7 nm is germicidal, while not at its optimal peak strength, yet strong enough to attack the molecular structure of mould, spores, fungi, bacteria, viruses, and other pathogens, detaching the oxygen atom out of the DNA/RNA chain of these live organic pathogens and thus preventing regeneration of these, rendering them harmless by repeated exposure to the PCO interaction. Using return air as part of the incoming airstream is thus aided in this cleaning process, as the return air already passed before through this photo-catalytic oxidation process.
Technical Specifications: PCOC™3
| Dimensions | 659mm x 670mm x 585mm |
| Weight | 36 Kg |
| Max Air Flow | 1500 CFM 42.5 m3 / min Max Air Flow: 1200 CFM 34 m3 / min |
| Max face velocity | 625 FPM 190 m / min |
| Power | 220-240 V / 50-60 Hz / 1.8 Amps 150watts or 220 V / 50 Hz / 0.9 Amps 150 watts |
| Fuse | Replace only with AGC‐2 |
| Catalyst | TiO2 19.5 m2 |
| U.V. Range | 253.7 NM U.V. Range |
| Power consumption | 6 UVC lamps at 20 watt each = 120 watt/hour |
| Application | 230 m2 |
| Service | U.V Lamps‐every 12 months Service, replace Only with LTO 16 UV lamps. Filter – every 6 month. |
| Warranty | 2 year limited warranty on all components excluding lights and filter |
| CFM | M3/M | SP | Pascal | FPM | m/s |
| 2000 | 56.63 | 0.21 | 52.30 | 578 | 2.93 |
| 1500 | 42.48 | 0.09 | 22.42 | 432 | 2.20 |
| 1000 | 28.32 | 0.03 | 7.47 | 288 | 1.46 |
| 900 | 25.49 | 0.02 | 5.98 | 259 | 1.32 |
| 600 | 16.99 | 0.01 | 2.99 | 173 | 0.88 |
Key:
CFM = cubic feet/minute
m3/m = cubic meter per minute
SP = static pressure
Pascal = Pascal
FPM = feet per minute
m/s = meter per second
| Order Code | Description |
| FHTIZPCOC™3 | ZANDAIR™ PCOC™3 In Duct Air Purifier System |
| FHTIZRK016 | Replacement MERV-11 Electrostatic Filter for PCOC3. |
| FHTIZRK019 | Replacement Set of Two UV Lamps 22W...3 Sets required for each PCOC™3 |
| FHTIZRK025 | Replacement MERV-13 Electrostatic Filter |
| FHTIZRK026 | Replacement Potassium Permanganate Filter |
