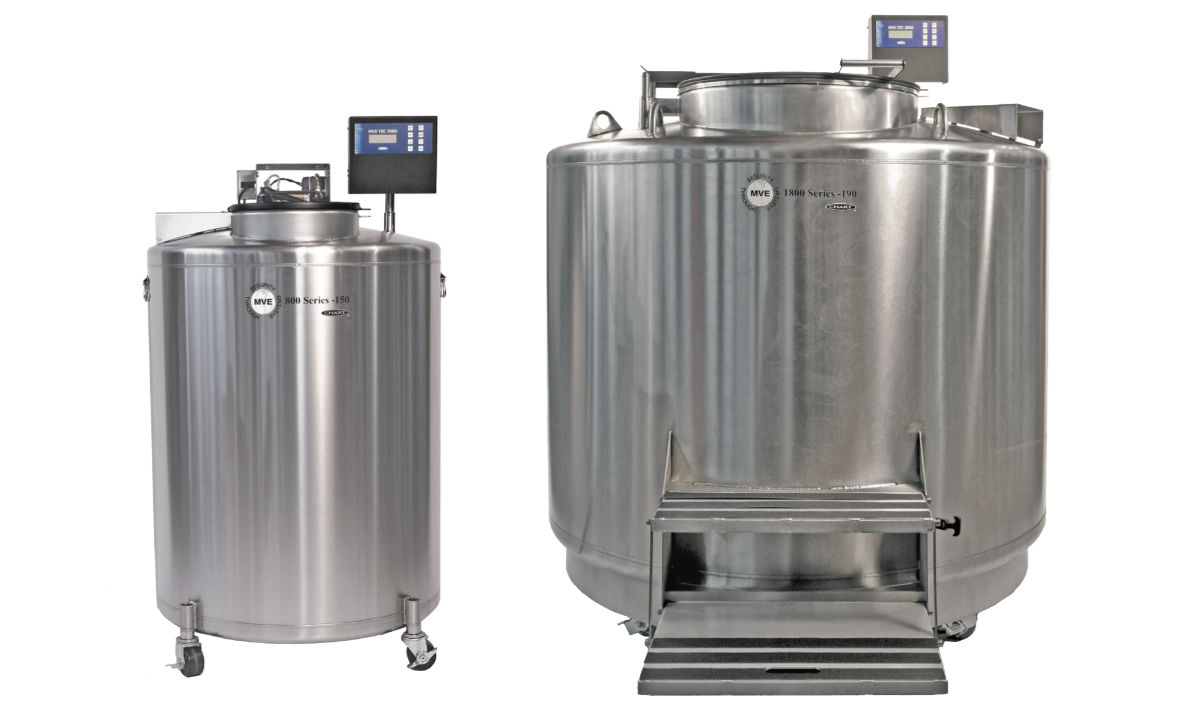

The MVE Stock Series Provides the Ultimate in Security for the Breeding Industry.
Primarily Used to Store Semen and Embryos.
The freezers are designed for pull and pack shipment, with a wide neck opening for easy access. Although engineered for full liquid storage, the MVE Stock Series can be operated with vapor using associated vapor storage accessory packs.
The MVE 816P-2T-190 and 1877P-2T-190 freezers have been created with the fertility market in mind. The innovative inventory system incorporates a two level storage arrangement that utilizes an access portal to allow removal of product stored on the lower level. A Custom storage system permits working just below the neck of the MVE 816 2-T keeping the stored items at cryogenic temperatures while working with them. This adds valuable sample temperature security for IVF needs.
Principal Feature
- Wide neck opening
- High Efficiency neck utilize on the 816 2-T
- Lowest liftover height
- Largest liquid nitrogen capacity
- Conform to MDD 93/42/EEC, the Medical Device Directive for the EU. Freezer systems UL/C-UL Listed
- Optional battery back-up
- 2 year warranty on parts
- 5 year warranty on vacuum
| MVE Stock Series Model | 103 | 808 | 816P-T-190 | 1318 | 1842P-150 | 1877P-2T-150 |
| 1.2 & 2mm Vials | - | 11700 | 10500 | 20800 | - | - |
| Large Racks (100 cell boxes) | - | 12 | - | 24 | - | - |
| Mini Racks (25 cell boxes) | - | 4 | - | 8 | - | - |
| High Security Straw Capacity (0.5ml) | 7728 | 37296 | 31584 | 76104 | - | 347424 |
| No. of Canisters (73mm) | 23 | 74 | 94 | 151 | - | 517 |
| Goblets/Canister : Straws/Goblet | 2:168 | 3:168 | 2:168 | 3:168 | 2:168 | 4:168 |
| No. of SUC-1 Canisters | 22 | 61 | 115 | 129 | 294 | 539 |
| No. of 1.2mm Vials on Canes | 3168 | 8784 | 16560 | 18576 | 42336 | 77616 |
| No. of 2.0mm Vials on Canes | 1760 | 4880 | 9200 | 10320 | 23520 | 43120 |
| No. of 1/2cc Straws (10/cane) | 6820 | 18910 | 35650 | 39990 | 91140 | 167090 |
| Liquid Nitrogen Capacity (w/o inventory) (litres) | 39 | 230 | 381 | 482 | 872 | 1456 |
