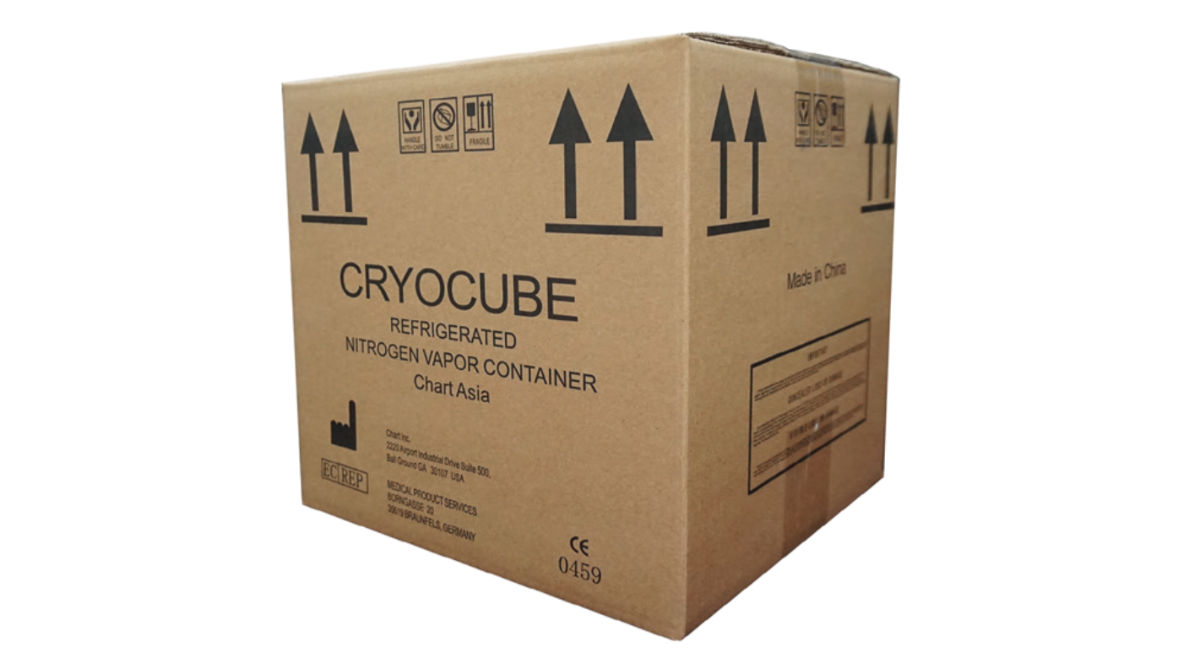

The MVE CryoCube is a secure cryogenic shipping option for your biological samples.

The unit incorporates creative engineering and simplistic design to allow shipping in any orientation without sacrificing temperature or hold time. Improved welded construction provides the MVE CryoCube with consistent, high quality design with every unit. The unit allows for savings on dry ice, packaging, shipping cost, and disposal.

Features include:

  • Charges in 2 hours
  • Operates as a dry shipper
  • -150° C temperature
  • 5-day holding time
  • Safe shipping in any orientation
  • Safe for international shipping
  • Welded construction for added integrity



Cryocube
Maximum Storage Capacity
Number of Blood Bags NA
Number of Canisters 1
Number of 1/2 cc Straws 10/cane 88
Number of 1/2 cc Straws 1 Level Bulk 182
Number of 1.2 & 2.0 ml vials 5/cane 6
Performance
LN2 Capacity w/o Inventory L est. 1.5
Static Evaporation Rate* L/day -
Static Holding Time* day 5
Unit Dimensions
Neck Opening in. (mm) 1.4 (35)
Overall Height in. (mm) 2.5 (317.5)
Overall Width in. (mm) 12 (305)
Overall Diameter in. (mm) 1.25 (32)
Weight Empty lb. (kg) 7.5 (3.41)
Weight Charged vapor lb. (kg) 10.2 (4.63)
Warranty TWO Year Vacuum Warranty

 * Static evaporation rate and static holding time are nominal. Actual rate and holding time will be affected by the nature of container use, atmospheric conditions, and manufacturing tolerances.Conforms to MDD 93/42/EEC, the Medical Device Directive for the EU.
