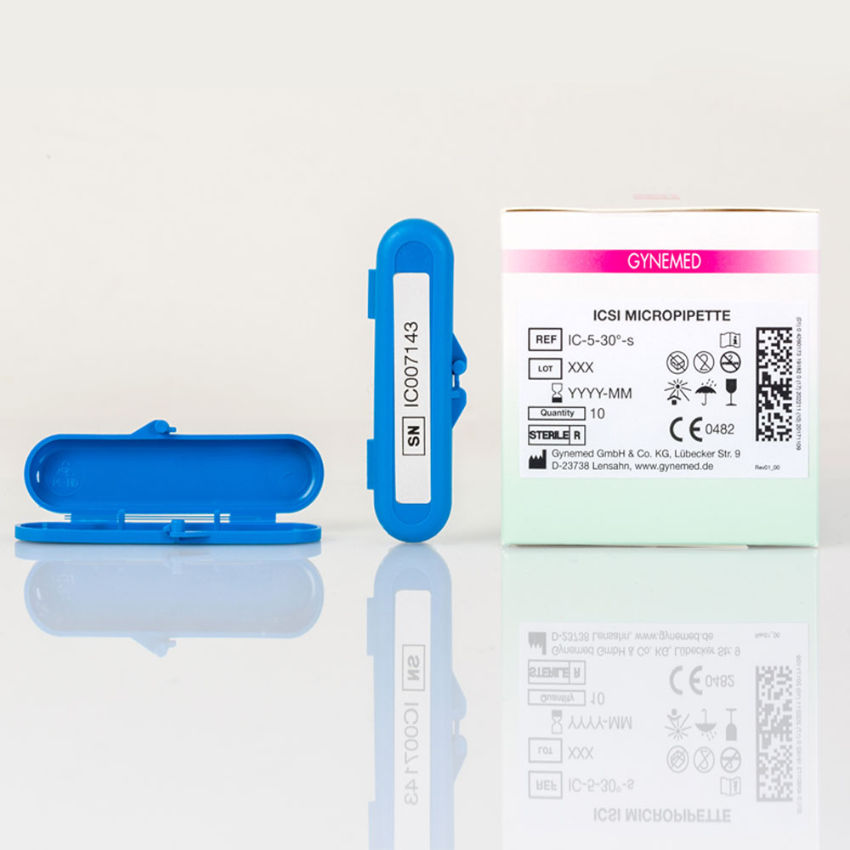

The Gynemed ICSI micropipettes are used to aspirate the sperm and inject it into the oocyte.
Available straight or with bending angle and beveled tip with or without spike.
Each pipette has its own serial number. This is an additional quality control element that allows full traceability of individual pipettes. For each pipette, an image from its release may be obtained. Gynemed micropipettes are prepared from medical grade borosilicate glass tub, sterilized by gamma radiation and individually packed.
Gynemed micropipettes are CE (Class IIa) marked and Mouse Embryo tested. Sterility and functionality guaranteed for 5 years from time of manufacture and customized production is available on request!
| Order codes |
Inner diameter µm |
Angle |
Spike(s) |
Box (pieces) |
| ICSI Micropipettes | ||||
| FGYIC-5-0-be | 5 µm | Straight | Bevelled | 10 |
| FGYIC-5-0-s | 5 µm | Straight | Spike | 10 |
| FGYIC-5-20-be | 5 µm | 20 degress angle | Bevelled | 10 |
| FGYIC-5-20-s | 5 µm | 20 degress angle | Spike | 10 |
| FGYIC-5-30-be | 5 µm | 30 degress angle | Bevelled | 10 |
| FGYIC-5-30-s | 5 µm | 30 degress angle | Spike | 10 |
| FGYIC-5-35-be | 5 µm | 35 degress angle | Bevelled | 10 |
| FGYIC-5-35-s | 5 µm | 35 degress angle | Spike | 10 |
| FGYIC-5-40-be | 5 µm | 40 degress angle | Bevelled | 10 |
| FGYIC-5-40-s | 5 µm | 40 degress angle | Spike | 10 |
| Large ICSI - Spermatid Micropipettes | ||||
| FGYIC-7-0-be | 7 µm | Straight | Bevelled | 10 |
| FGYIC-7-0-s | 7 µm | Straight | Spike | 10 |
| FGYIC-7-20-be | 7 µm | 20 degress angle | Bevelled | 10 |
| FGYIC-7-20-s | 7 µm | 20 degress angle | Spike | 10 |
| FGYIC-7-30-be | 7 µm | 30 degress angle | Bevelled | 10 |
| FGYIC-7-30-s | 7 µm | 30 degress angle | Spike | 10 |
| FGYIC-7-35-be | 7 µm | 35 degress angle µm | Bevelled | 10 |
| FGYIC-7-35-s | 7 µm | 35 degress angle | Spike | 10 |
| FGYIC-7-40-be | 7 µm | 40 degress angle | Bevelled | 10 |
| FGYIC-7-40-s | 7 µm | 40 degress angle | Spike | 10 |
| Thin Line | ||||
| FGYIC-SL-4.6-30-s | 4.6 µm | 30 degress angle | Thin Line | 10 |
| FGYIC-SL-4.6-35-s | 4.6 µm | 35 degress angle | Thin Line | 10 |
