Biopsy micropipettes are used to perform biopsies on the embryo (blastomere and trophectoderm) or the oocyte (polar body) for Preimplantation Genetic Screening (PGS).
Available straight or with bending angle and with blunt or beveled tip.

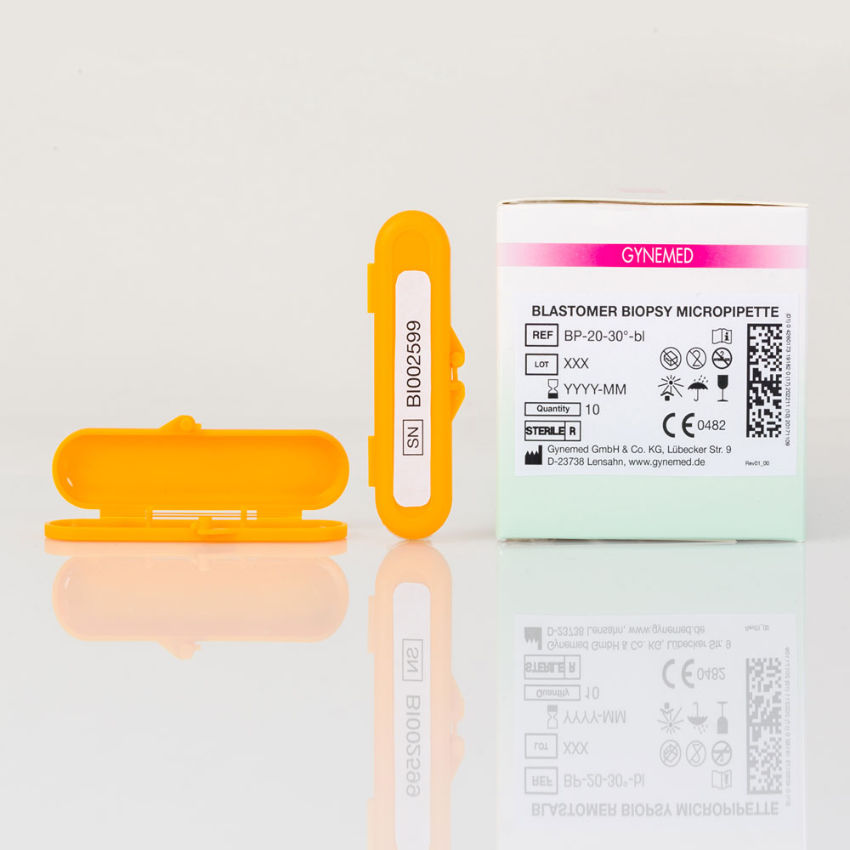

Each pipette has its own serial number. This is an additional quality control element that allows full traceability of individual pipettes. For each pipette, an image from its release may be obtained. Gynemed micropipettes are prepared from medical grade borosilicate glass tub, sterilized by gamma radiation and individually packed.
Gynemed micropipettes are CE (Class IIa) marked and Mouse Embryo tested. Sterility and functionality guaranteed for 5 years from time of manufacture and customized production is available on request!
| Order codes |
Inner diameter µm |
Angle |
Opening |
Box (pieces) |
| Inner Diameter 10 µm | ||||
| FGYBP-10-0-bl | 10 µm | Straight | Blunt | 10 |
| FGYBP-10-0-be | 10 µm | Straight | Bevelled | 10 |
| FGYBP-10-30-bl | 10 µm | 30 degress angle | Blunt | 10 |
| FGYBP-10-30-be | 10 µm | 30 degress angle | Bevelled | 10 |
| FGYBP-10-35-bl | 10 µm | 35 degress angle | Blunt | 10 |
| FGYBP-10-35-be | 10 µm | 35 degress angle | Bevelled | 10 |
| Inner Diameter 15 µm | ||||
| FGYBP-15-0-bl | 15 µm | Straight | Blunt | 10 |
| FGYBP-15-0-be | 15 µm | Straight | Bevelled | 10 |
| FGYBP-15-30-bl | 15 µm | 30 degress angle | Blunt | 10 |
| FGYBP-15-30-be | 15 µm | 30 degress angle | Bevelled | 10 |
| FGYBP-15-35-bl | 15 µm | 35 degress angle | Blunt | 10 |
| FGYBP-15-35-be | 15 µm | 35 degress angle | Bevelled | 10 |
| Inner Diameter 20 µm | ||||
| FGYBP-20-0-bl | 20 µm | Straight | Blunt | 10 |
| FGYBP-20-0-be | 20 µm | Straight | Bevelled | 10 |
| FGYBP-20-30-bl | 20 µm | 30 degress angle | Blunt | 10 |
| FGYBP-20-30-be | 20 µm | 30 degress angle | Bevelled | 10 |
| FGYBP-20-35-bl | 20 µm | 35 degress angle | Blunt | 10 |
| FGYBP-20-35-be | 20 µm | 35 degress angle | Bevelled | 10 |
| Inner Diameter 25 µm | ||||
| FGYBP-25-0-bl | 25 µm | Straight | Blunt | 10 |
| FGYBP-25-0-be | 25 µm | Straight | Bevelled | 10 |
| FGYBP-25-30-bl | 25 µm | 30 degress angle | Blunt | 10 |
| FGYBP-25-30-be | 25 µm | 30 degress angle | Bevelled | 10 |
| FGYBP-25-35-bl | 25 µm | 35 degress angle | Blunt | 10 |
| FGYBP-25-35-be | 25 µm | 35 degress angle | Bevelled | 10 |
| Inner Diameter 30 µm | ||||
| FGYBP-30-0-bl | 30 µm | Straight | Blunt | 10 |
| FGYBP-30-0-be | 30 µm | Straight | Bevelled | 10 |
| FGYBP-30-30-bl | 30 µm | 30 degress angle | Blunt | 10 |
| FGYBP-30-30-be | 30 µm | 30 degress angle | Bevelled | 10 |
| FGYBP-30-35-bl | 30 µm | 35 degress angle | Blunt | 10 |
| FGYBP-30-35-be | 30 µm | 35 degress angle | Bevelled | 10 |
| Inner Diameter 35 µm | ||||
| FGYBP-35-0-bl | 35 µm | Straight | Blunt | 10 |
| FGYBP-35-0-be | 35 µm | Straight | Bevelled | 10 |
| FGYBP-35-30-bl | 35 µm | 30 degress angle | Blunt | 10 |
| FGYBP-35-30-be | 35 µm | 30 degress angle | Bevelled | 10 |
| FGYBP-35-35-bl | 35 µm | 35 degress angle | Blunt | 10 |
| FGYBP-35-35-be | 35 µm | 35 degress angle | Bevelled | 10 |
