First Unit to be Designed for Both Vapor Shipment and Liquid Storage.

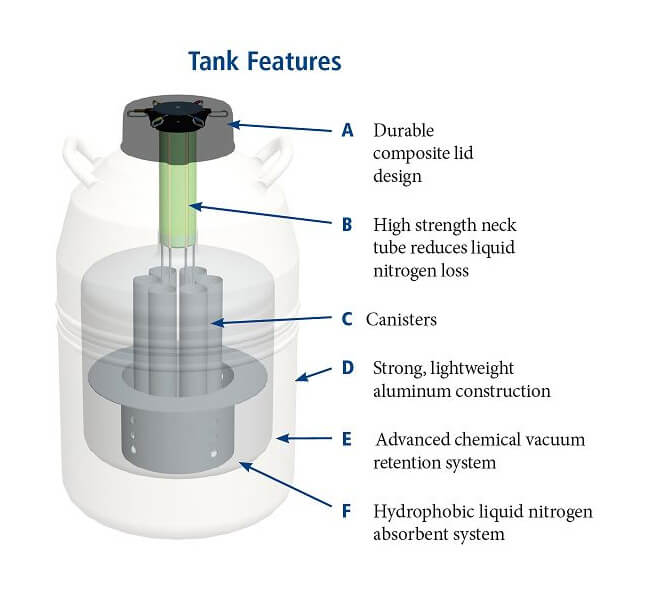

The Doble QWick™ Series utilizes an absorbent wicking material that charges with liquid nitrogen in fewer than two hours, providing the capacity for same-day vapor shipping. A unique absorbent layer in the base of the storage tanks of both series enables them to be charged with nitrogen and employed as dry shippers with hold times of up to 21 days. Once at the final destination, the tanks can be filled with liquid and used for long term storage, therefore avoiding the need for return shipments.
Principal Features
- Liquid and vapor storage options
- Charges in < 2 hours
- Doble units can be used for storage at site negating the need to transfer samples on arrival
- Low liquid nitrogen consumption
- Convenient lightweight package
- 2 year parts warranty
- 3 year vacuum warranty
- Conforms to MDD 93/42/EEC, Medical Device Directive for the EU
| Specifications | |||||||

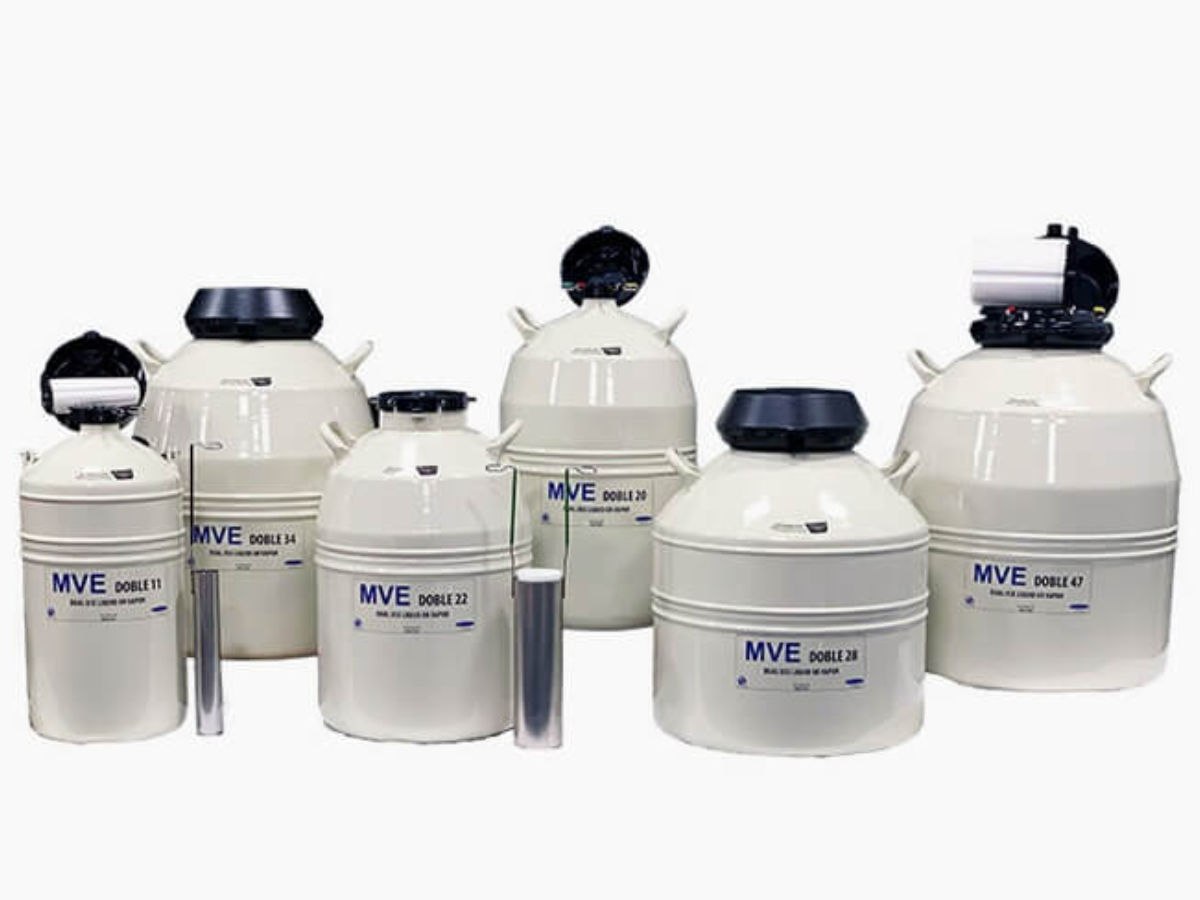

| MVE Doble Series Model | 11 |
20 | 22 |
28 | 34 | 47 | 47-10 |
| No. of Canisters | 6 | 6 | 6 | 6 | 6 | 6 | 10 |
| No. of 1/2cc Straws (10/cane) | 660 | 660 | 2400 | 2400 | 2100 | 4500 | 3500 |
| Vial Capacity | 210 | 210 | 810 | 810 | 630 | 1320 | 1050 |
| LN2 Capacity w/o Inventory (litres) | 10.0 | 18.5 | 20.0 | 28.0 | 32.0 | 46.0 | 46.0 |
| Vapor Capacity (litres) | 3.1 | 4.2 | 5.5 | 8.4 | 7.9 | 6.0 | 6.0 |
| Static Evaporation Rate (litres per day) | 0.17 | 0.10 | 0.35 | 0.35 | 0.20 | 0.40 | 0.40 |
| Working Duration (days for liquid) | 37 | 116 | 40 | 50 | 110 | 74 | 72 |
| Working Duration (days for vapor) | 17 | 21 | 18 | 21 | 21 | 21 | 21 |
