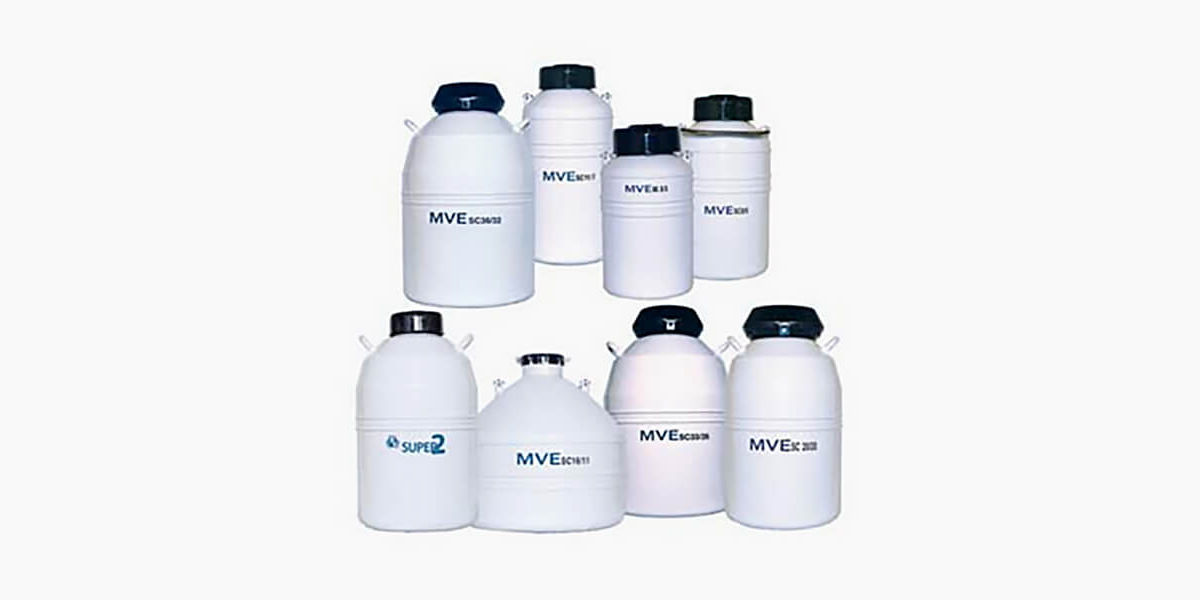

Small Capacity (SC) Series Aluminum Dewars Provide Long Term Secure Storage with Low Liquid Nitrogen Consumption in a Convenient Lightweight Package.

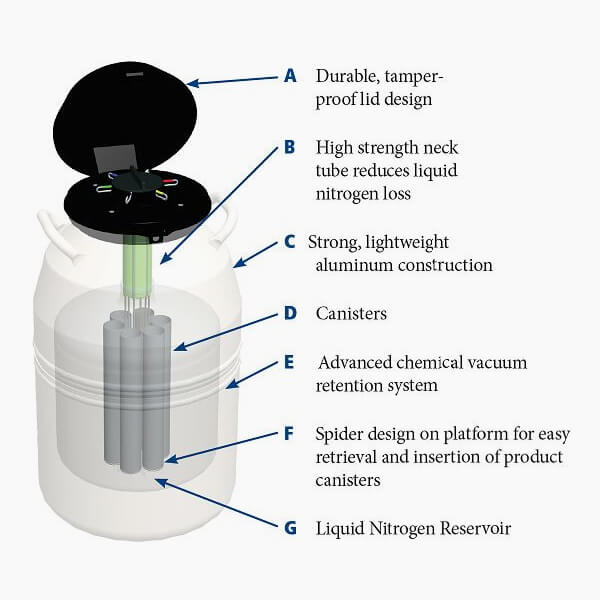

Bend Don't Break™ (Patent Pending) – a redesigned top head that deforms to absorb G-force damage to the neck area and minimize the chances of product loss through mishandling and during transportation.
Semen Safe™ – a stronger composite neck that is 20% stronger than the previous design and specifically intended to minimize damage and prevent semen loss through mishandling and during transportation.
Principal Features
- Low liquid nitrogen consumption
- Convenient lightweight package
- 2 year parts warranty
- 5 year vacuum warranty
- Conform to MDD 93/42/EEC, Medical Device Directive for the EU
| SC Series for Small Capacity Users |
|||||||
| SC Series Model | SC 3/3 |
SC 8/5 |
SC 11/7 |
SC 20/20 Signature* |
SC 33/26 |
SC 36/32 |
Super 2 |
| No. of Canisters | 6 | 6 | 6 | 6 | 6 | 6 | 10 |
| No. of 1/2cc Straws (10/cane) | - | - | 660 | 660 | 660 | 660 | 660 |
| No. of 1/2cc Straws (1 Level Bulk) | 440 | 440 | 879 | 879 | 879 | 879 | 879 |
| No. of 1.2 & 2.0ml Vials (5/cane) | - | - | 210 | 210 | 150 | 150 | 210 |
| Liquid Capacity w/o Inventory (litres) | 3.6 | 8.4 | 11.0 | 20.5 | 33.0 | 36.5 | 24.5 |
| Static Evaporation Rate (litres per day) | 0.13 | 0.15 | 0.16 | 0.085 | 0.13 | 0.10 | 0.085 |
| Working Duration (full days) | 37 | 116 | 40 | 50 | 110 | 74 | 72 |
* SC 20/20 Signature includes Bend Don't Break™ durability feature.
