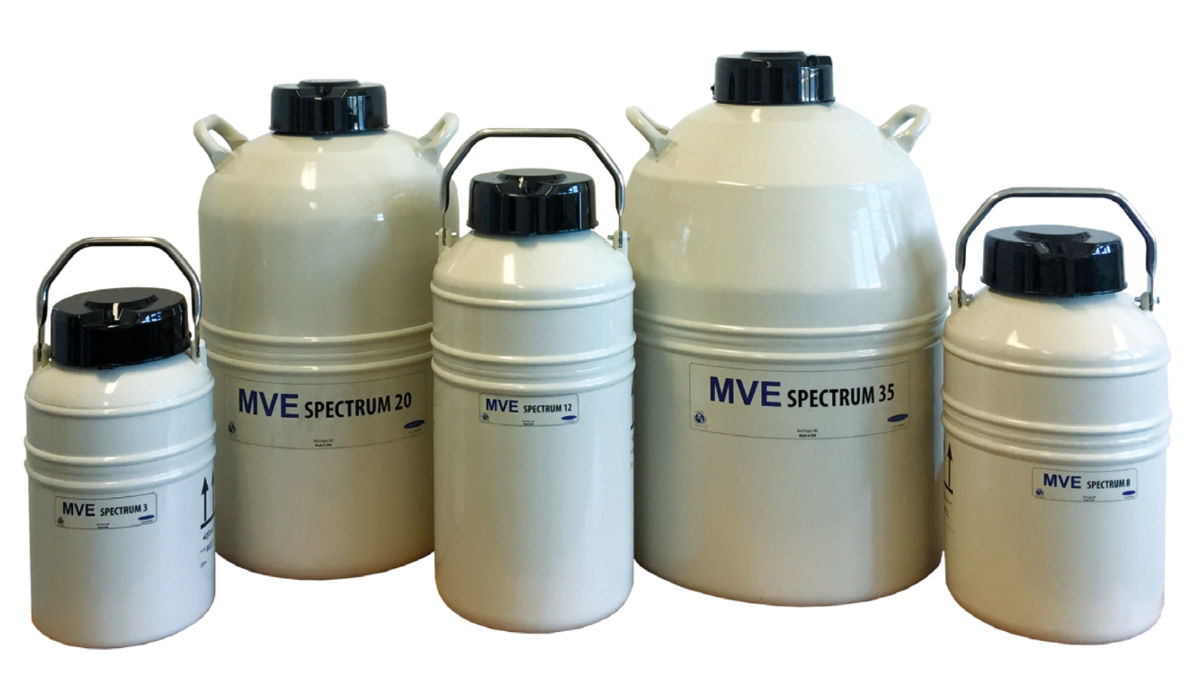

The Spectrum Series is Designed for the User Who has Small Capacity Needs, but Requires Long-Term Storage and Low Liquid Nitrogen Consumption in a Convenient Lightweight Package.

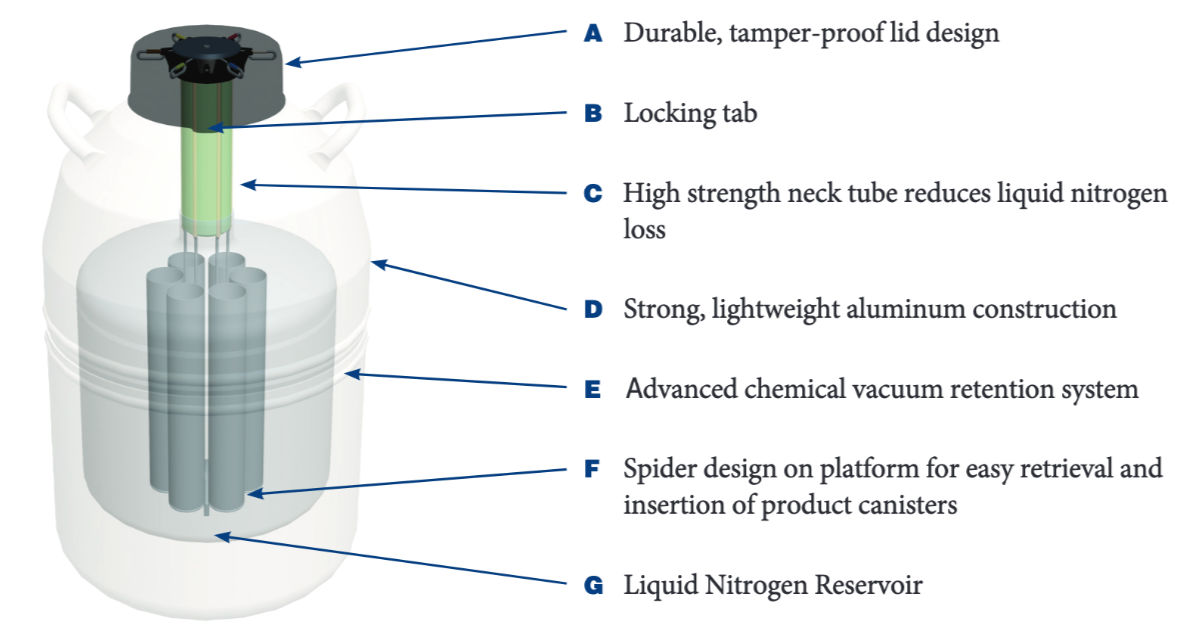

Bend Don't Break™ – a redesigned top head that deforms to absorb G-force damage to the neck area and minimize the chances of product loss through mishandling and during transportation.
Semen Safe™ – a stronger composite neck that is 20% stronger than the previous design and specifically intended to minimize damage and prevent semen loss through mishandling and during transportation.
Principal Features
- Designed for small capacity storage
- Low liquid nitrogen consumption
- Convenient lightweight package
- 5 year standard warranty
- Conform to MDD 93/42/EEC, Medical Device Directive for the EU
| Specifications |
|||||
| MVE Spectrum Series Model | Spectrum 3 |
Spectrum 8 |
Spectrum 12 |
Spectrum 20 Signature* |
Spectrum 35 |
| No. of Canisters | 6 | 6 | 6 | 6 | 6 |
| No. of 1/4cc Straws (28/1ml cane) | - | - | 1512 | 1512 | 1512 |
| No. of 1/4cc Straws (1 Level Bulk) | 1980 | 1980 | 1932 | 1932 | 1932 |
| No. of 1.2 & 2.0ml Vials (5/cane) | - | - | 210 | 210 | 210 |
| Liquid Capacity w/o Inventory (litres) | 3.6 | 8.4 | 11.0 | 20.5 | 36.5 |
| Static Evaporation Rate (litres per day) | 0.13 | 0.15 | 0.15 | 0.095 | 0.12 |
| Working Duration (full days) | 17 | 35 | 46 | 134 | 228 |
* Spectrum 20 Signature includes Bend Don't Break™ durability feature.
